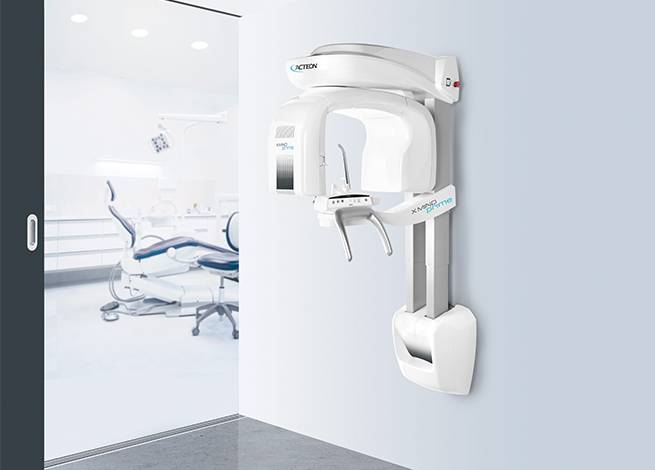

Acteon X-Mind Prime 3D

3D diagnosis is more accessible than ever with this smart & compact solution that provides high-quality capabilities and simplicity of use.

Product Description

The X-Mind Prime 3D is a complete imaging solution combining panoramic and 3D x-rays, from general examination to specific treatment planning. You have the ability to choose 2D or 3D examinations from a wide range of clinical applications, plan your treatment, and efficiently communicate with your patient. Views include:

  • Dental Panoramic
  • Maxillary Sinuses
  • Temporomandibular Joint
  • Half-Panoramic (left and right)
  • Child Panoramic
  • Bitewing (left and right)
  • Frontal

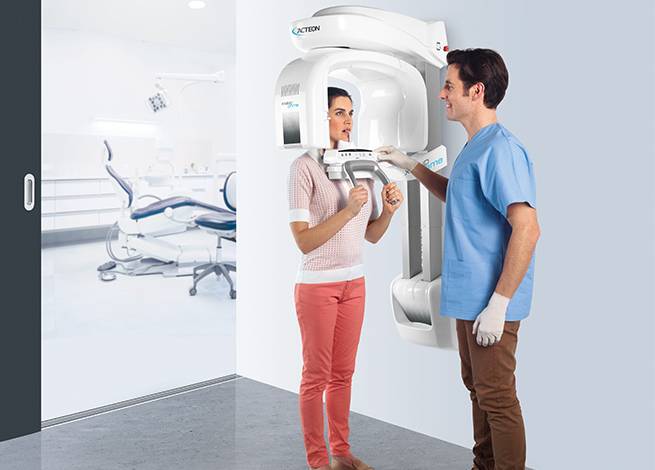

Whether sitting or standing at any height, the telescopic columns can be directly adjusted using the control panel. X-Mind Prime's open space configuration suits all types of patients and is easily accessible for wheelchair users with its zero-footprint space.

The AIS software is powerful and intuitive and optimizes your diagnosis time with superior design, clean lines, user-friendly, open architecture, full integration, and advanced functionalities. Features of the AIS software include:

  • Implant planning
  • Crown placement
  • Mandibular nerve tracking
  • Easy navigation in different sections
  • Surface, distance and angle measurement
  • Substantial and scalable implant library
  • Printed implant report
  • Sharing of information on a network
  • Cases exported on a CD or USB stick
  • Export in STL format
  • Metal artifact reduction filter
  • Panoramic and cephalometric image detail optimization filter
  • ENT module
  • Virtual endoscope
  • Integrates with various patient management software
  • DICOM compatible


X-Ray Sources
Tube Type: OPX 105-12 (CEI)
Total Filtration: 2.5mm AI eq. @ 86kVp
Tube Voltage: 60 -86 kV
Anodic Current: 2 -12.5 mA
Focal Spot: 0.5 mm

Type: CMOS Flat Panel
Pixel Size: 120um
Voxel Size: Minimum 87.5 um

PAN: Panoramic (adult/child) - TMJ open/closed mouth in lateral projection - maxillary sinuses (P-A) - half panoramic (left/right) - low dose panoramic - frontal dentition - ortho rad panoramic - bitewing (left/right/double).
3D Programs: Full dentition (85 x 93 mm)* - Single jaw (85 x 50 mm)* - Manibular teeth (50 x 50 mm) - Maxillary teeth (50 x 50 mm) - TMJ (85 x 93 mm)* - Sinuses (85 x 93 mm)*
Exposure Time: 7 seconds in full detention
Grey Levels: 65536 - 16 bits

Mechanical Data
Footprint: 43.6" x 37.5"
Height: Max 86.2 inches
Weight: Max 148 lbs

Class & Type: Class I with type B applied parts according to IEC 60601-1 classification
