Carestream DRX-Evolution Plus

The new DRX-Evolution Plus offers:

New LED lighting for enhanced functionality
and aesthetics
Greater flexibility with an extended tube column
High performance Carestream generator
Optional table to accommodate patients up to
705 lbs (320 kg)
Forward-looking design to accommodate advanced
imaging applications in the future

*Some features are optional purchases

Request Product Pricing

Product Description

Proven Image Quality

The wireless, cassette-sized DRX Detector and EVP Plus image-processing software deliver superb image quality.
Optional EVP Plus Software provides increased latitude and high-contrast image detail.
Software options accommodate specialties such as pediatrics, orthopedics, and trauma.

Versatility

Choose a one-, two- or three-detector option to perform many types of imaging exams, including tabletop and long-length imaging.
The automated overhead tube is designed for positioning convenience and efficiency.
Detectors are fixed or wireless.

Scalability

Customize a DR solution to fits your workflow and budget.
Add DR systems as your facility expands and grows.
Designed for advanced future applications.

Increased Productivity

Images are ready for viewing and manipulation on the console and in seconds.
One space-saving console controls all medical imaging functions.
Auto-positioning for fast and accurate setup

Specifications

DRX Detectors

DRX-Plus 3543 Detector with gadolinium (GOS) scintillator
DRX-Plus 3543C Detector with cesium iodide (Csl), with increased DQE and MTF
DRX 2530C Detector with a smaller format design
A 17 in. x 17 in. (43 x 43 cm) stationary GOS detector, or a low-dose, cesium (CsI) panel option

Table Options

Standard table for patients up to 600 lbs. (272 kg)
High weight capacity for patientsup to 705 lbs. (320 kg.)
Both feature a four-way floating top
Table movement initiated through double-tap foot pedals

Motorized Wall Stand

Vertical Bucky range of motion from the floor up to 71 in. (180 cm)
Horizontal projections with tilt capability from negative vertical (–20°) to horizontal (90°)
Optional floor-mounted rail system for lateral stand movement
Auto tracking and centering align detector with overhead tube
Broad range of studies – chest, lateral cervical spine, standing knee and more
Horizontal Bucky positioning for upper extremity and under-the-table studies
Side-to-side swing angulations for easy cross-table exams on gurneys

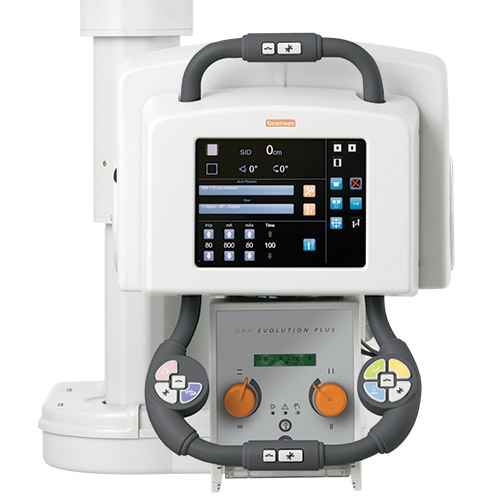

Motorized Overhead Tube

Preprogrammed tube and Bucky positions, generator and collimator settings maximize efficiency
Auto-positioning and auto-centering for table or wall stand procedures
Auto-tracking directs tube to follow detector to correct location or move the tube and the detector will follow
Asymmetric-collimation capability allows top or bottom blade to remain fixed while moving the other
Motor-assist function provides easy manual overhead tube positioning reducing operator fatigue

Non-Motorized Overhead Tube

Monitor exams accurately with color LCD’s self-righting display of techniques and key data including SID, kVp/mAs, exam type, tube-head angle, active detector, auto-centering and auto-tracking
Simple collimator controls positioned for easy adjustment
Automatic collimator option with additional internal filtration available

Operator Console

Flexible user interface, with touch screen control, customized to match clinical workflow
Supports Automated Procedure Recognition (APR)
Supports workflow protocols such as DxIOD, IHE Scheduled Workflow, IHE Consistent Presentation of Images and IHE Dose Reporting

Options

Optional Linear Tomography
Bring anatomical structures into focus in a predefined plane – then blur or eliminate the details of the structures above and below the plane, to support the efficacy of procedures such as Intravenous Pyelograms (IVPs). Movement control is fully automatic, and switching to perform a tomography exam is fast and easy.

Optional Long-length Imaging
Capture a wide range of vertebral and long-bone images with your patient in an upright or supine position. The system automatically aligns captures and stitches the images.

Transbay Option
A non-motorized overhead tube with the DRX Detector, paired with 39.3 ft (12 m) longitudinal rails, allows for rapid imaging in facilities with multiple trauma-bay configurations
