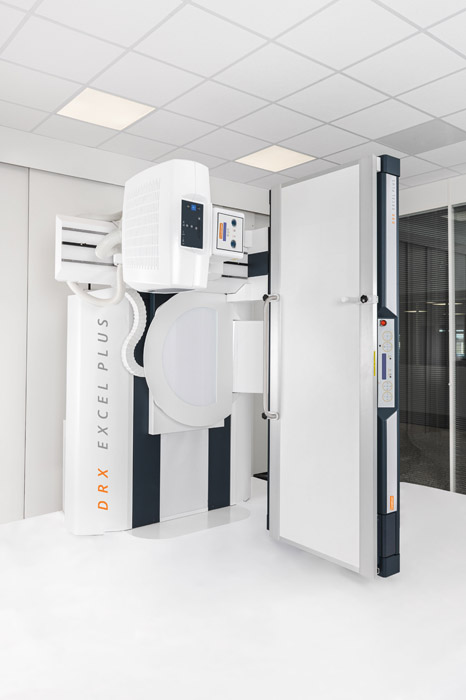

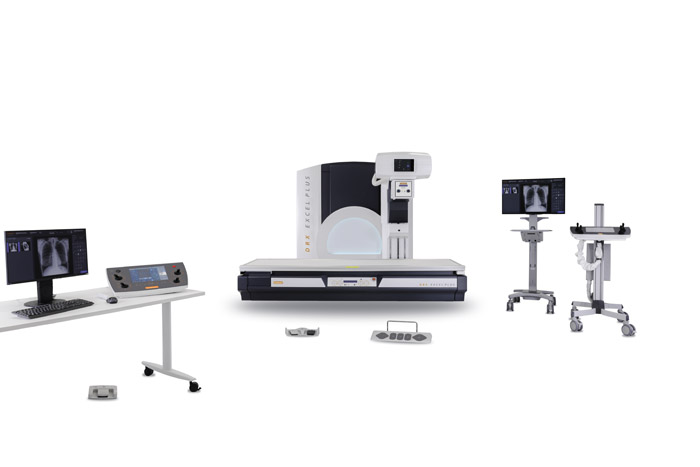

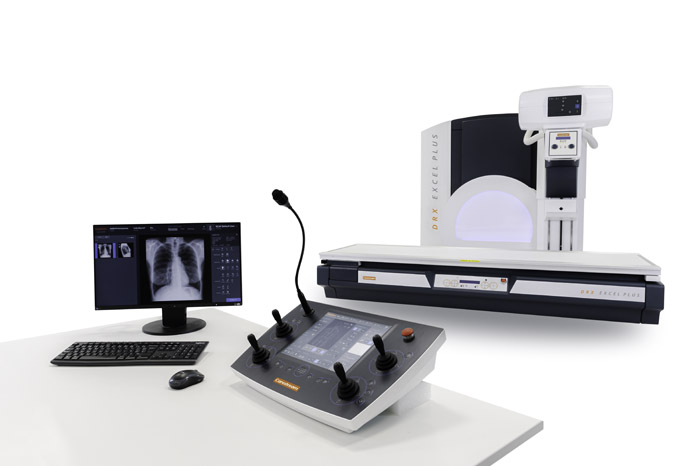

Carestream DRX-Excel Plus

Fluoroscopy technology has been optimized specifically for large and mid-size hospitals and medical centers with the CARESTREAM DRX-Excel Plus System. It combines both fluoroscopy and general radiology capabilities in one compact unit. It also delivers accelerated workflow, high-resolution images and a wide range of exams.

A conventional configuration, utilizing film or CR cassettes or our wireless DRX-Detector for radiology and an image intensifier for the fluoroscopy exam, or
A dRF configuration, with a single flat-panel digital detector for both RAD and fluoroscopy.

Request Product Pricing

Product Description

Four-way table movement facilitates easier patient positioning
Image stitching station combines multiple images into one for easier reading of spine and lower-limb exams

Specifications

Extensive SID capability exceeds competitors, acquiring images at any distance between 110 to 180cm
Table features a 265kg weight capacity with NO limitations on movements
+/- 90 degree tilting to enable all exam types
Table lowers to 48cm (19inches) making it easily accessible for wheelchair patients
Full system access from every side for easier patient transfer and exam versatility
Fully motorized, easy-to-use compression for abdominal and other exams
Control system operation remotely, or right at patient’s side
Motorized movement of tube and column maximizes speed and convenience
Offered with either an Image Intensifier* with high resolution CCD camera that maximizes image quality during fluoroscopy or a Flat Panel Detector that offers high image quality for either fluoroscopy or general radiology images
Auto positioning, as a function of extensive anatomical programs, facilitates faster exam set-up times
Patient overage of 201cm allows full exploration of even very tall individuals without repositioning
Relaxing ambient lighting and selectable music maximize patient comfort
DAP measurements allow tracking of the exact radiation dose received by each patient
Optional DRX-1 detector offers the power of the X-Factor and allows easy positioning for cross-table and weight-bearing exams

* The Image Intensifier is not an available option on the DRX-Excel Plus in the US and Canada.
