    Fujifilm FDR ES

    FDR ES detectors are the next generation of DR retrofit solutions designed with the essential conveniences of Fujifilm image acquisition and design. Light, portable, affordable detectors can optimize your x-ray room for table and free positioning and table top exams with top-of-the-line image quality. There's also no need to re-work your existing equipment because FDR ES fits existing standard Buckys and holders.

    Request Product Pricing

    Product Description

    FDR ES Detectors

    FDR ES detectors feature 150 micron pixel pitch and a wide 16-bit dynamic range, as well as Fujifilm's ISS (Irradiated Side Sampling) which provides ultra-sharp imaging with advanced dose efficiency. This exclusive design captures the x-ray image from the incident/patient side of the detector, in contrast to traditional designs which capture the image below the scintillator layer. The result is a reduction in the distance for light to spread, allowing the image to be captured where it’s sharper and stronger as it was always intended.

    High image quality from low dose

    As a world-leading imaging and information company, Fujifilm is dedicated both to improving image quality and advancing dose lowering technologies and safe healthcare standards for patients. FDR ES is a perfect example. It features engineering innovations which achieve dose efficiency improvements by as much as 30% compared to Fujifilm CR and as much as 20% over comparable DR detector designs, all while delivering exceptional images.

    Specifications

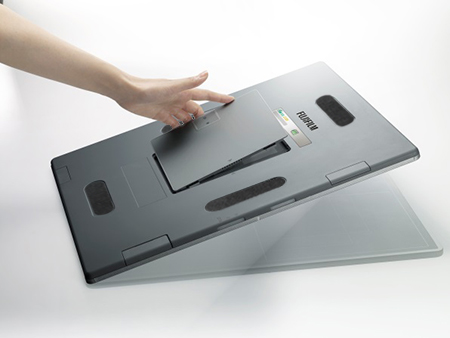

    • Rounded edges make FDR ES easy to pick up off flat surfaces.
    • Carbon fiber casings make FDR ES detectors durable and lightweight, with 14x17'' weighing only 6.4 lbs.
    • Sleep mode extends battery life for less frequent battery changes.
    • Built to protect against incidental sprayed liquid (IPX-3 rating).
    • Fujifilm detector innovations improve image quality and dose efficiency through advanced processing combined with patented ISS technology and improved circuitry performance.

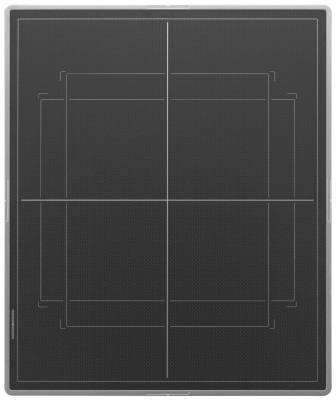

    FDR ES 24C

    These lightweight, small format 24x30cm detectors ideal for extremity imaging positioned outside of the bucky.

    Model FDR ES C24
    Size 24x30cm
    External (inches) 13 x 10.6 x 0.6
    Connection Tethered / Wireless
    Scintillator Csl
    Weight (lbs.) 3.5
    Pixel Matrix 1536 x 1920
    Pixel Pitch 150µ
    Cycle Time (sec.) Less than 9
    Image Display (sec.) 1-2

    FDR ES 14C

    These lightweight, cassette-sized 14x17 detectors are available with a detachable cord and the option of going wireless for added positioning versatility.

    Model FDR ES C35
    Size 14x17
    External (inches) 15 x 18 x 0.59
    Connection Tethered / Wireless
    Scintillator Csl
    Weight (lbs.) 6.4
    Pixel Matrix 2836 x 2836
    Pixel Pitch 150µ
    Cycle Time (sec.) Less than 10.5
    Image Display (sec.) 1-2

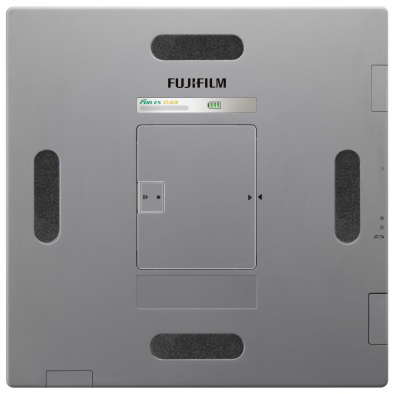

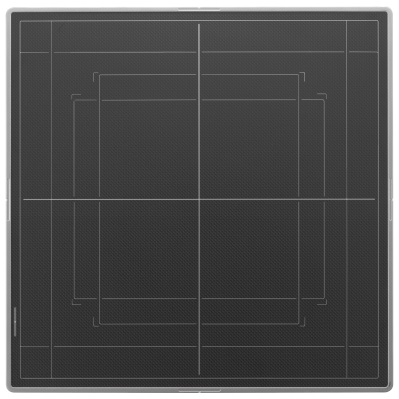

    FDR ES 17C

    These full sized 17x17 detectors are available with a detachable cord and an option to go wireless, making them ideal for dedicated use in an upright bucky or in-table solution.

    Model FDR ES C43
    Size 17x17
    External (inches) 18 x 18 x 0.59
    Connection Tethered / Wireless
    Scintillator Csl
    Weight (lbs.) 8.2
    Pixel Matrix 2836 x 2832
    Pixel Pitch 150µ
    Cycle Time (sec.) Less than 13
    Image Display (sec.) 1-2



    FDR ES 14G

    These lightweight, cassette-sized 14x17 detectors are available with a detachable cord and the option of going wireless for added positioning versatility.

    Model FDR ES G35
    Size 14x17
    External (inches) 15 x 18 x 0.59
    Connection Tethered / Wireless
    Scintillator GOS
    Weight (lbs.) 6.4
    Pixel Matrix 2836 x 2336
    Pixel Pitch 150µ
    Cycle Time (sec.) Less than 10.5
    Image Display (sec.) 1-2

    FDR ES 17G

    These full sized 17x17 detectors are available with a detachable cord and an option to go wireless, making them ideal for dedicated use in an upright bucky or in-table solution.

    Model FDR ES G43
    Size 17x17
    External (inches) 18 x 18 x 0.59
    Connection Tethered / Wireless
    Scintillator GOS
    Weight (lbs.) 8.2
    Pixel Matrix 2836 x 2832
    Pixel Pitch 150µ
    Cycle Time (sec.) Less than 13
    Image Display (sec.) 1-2
